Tinworksinc Harley/Chopper/Bobber Single Shock Front End Girder USA Made

$2,900.00

Tinworksinc Single Shock Front End Girder. Condition is New.
TINWORKSINC NARROW GLIDE SINGLE SHOCK GIRDER FRONT END.
*STOCK LENGTH 23"INCH/584.2MM NEGATIVE 4"INCH/101.6MM
*100% TIG WELDED 1"INCH 25MM DOM STEEL TUBING 156WALL 3.5MM THICK.
*ADJUSTABLE RACE SHOCK 350 PSI REBOUND ADJUSTMENT 350 PSI AS WELL.
*165MM SHOCK EYE TO EYE
*SET UP FOR INTERNAL FORK STOPS.
*ALL HIDDEN HARDWARE
*COMES WITH 1"INCH/25MM RISERS
*COMES COMPLETE READY TO BOLT ON RAW STEEL.
FITS MOST HARLEY-DAVIDSON BIG TWINS FROM 1949 TO PRESENT WITH 1"INCH 25MM NECK BEARINGS.
*WE CAN BUILD ANY LENGTH FOR YOU ALL THE PARTS ARE MADE WE ROLL THE TUBES AND WELD IT TOGETHER YOU HAVE THE OPTION OF ROLLED FRONT TUBES OR STANDARD STRAIGHT FRONT AS YOU CAN SEE IN THE PICS
*WE CAN BUILD FOR ANY SIZE WHEEL.
*PROUDLY MADE IN USA.
Follow are instagram for pictures TINWORKSINC

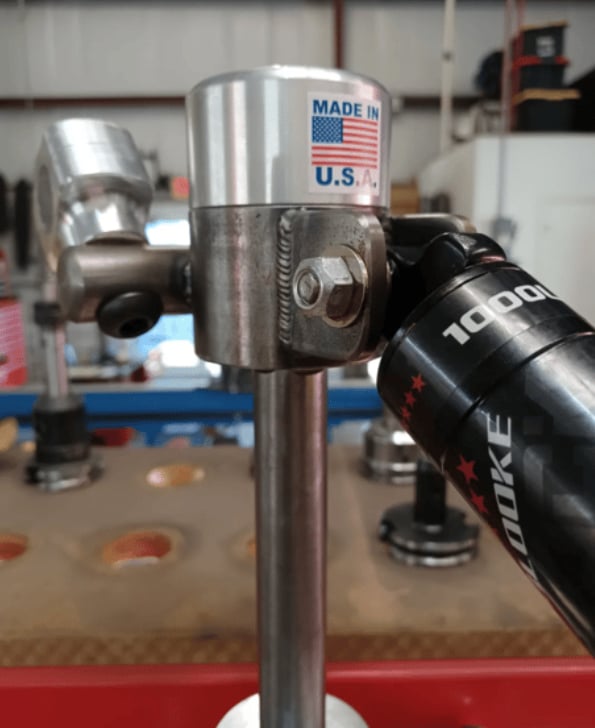

Image 1 of Tinworksinc Harley/Chopper/Bobber Single Shock Front End Girder USA Made

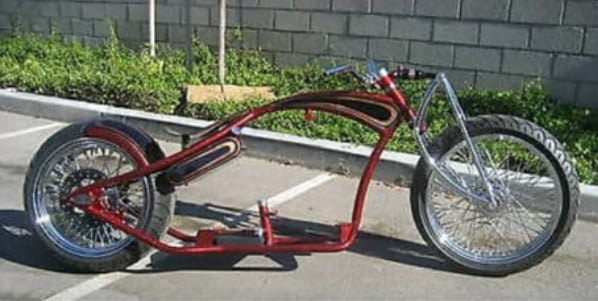

Image 2 of Tinworksinc Harley/Chopper/Bobber Single Shock Front End Girder USA Made

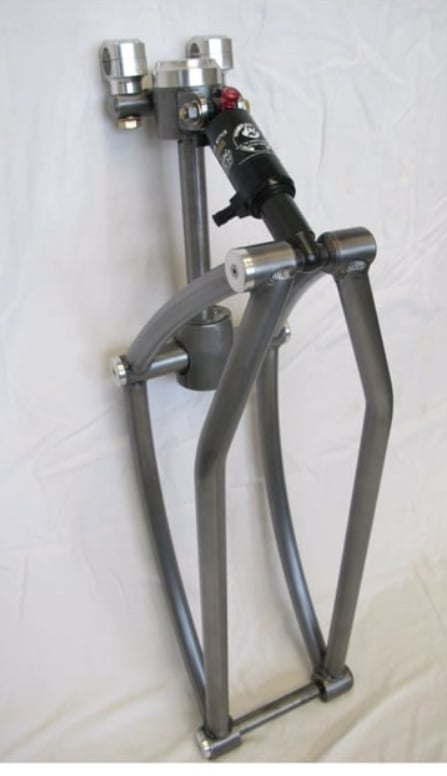

Image 3 of Tinworksinc Harley/Chopper/Bobber Single Shock Front End Girder USA Made

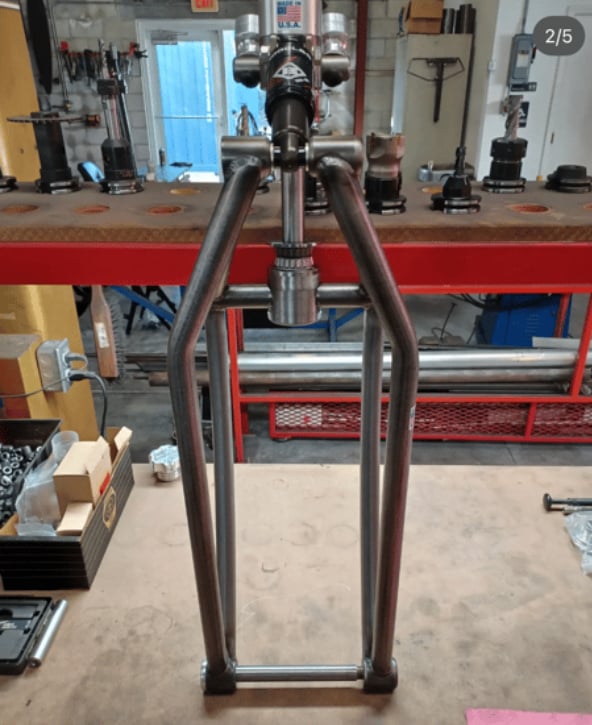

Image 4 of Tinworksinc Harley/Chopper/Bobber Single Shock Front End Girder USA Made

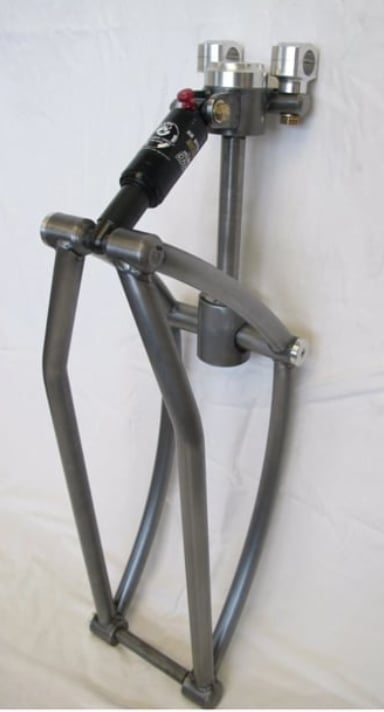

Image 5 of Tinworksinc Harley/Chopper/Bobber Single Shock Front End Girder USA Made

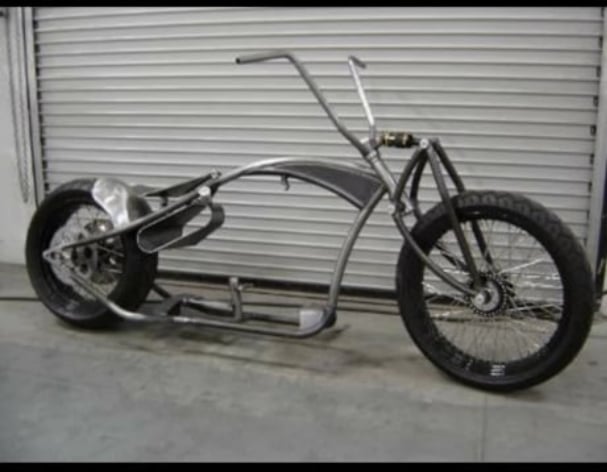

Image 6 of Tinworksinc Harley/Chopper/Bobber Single Shock Front End Girder USA Made

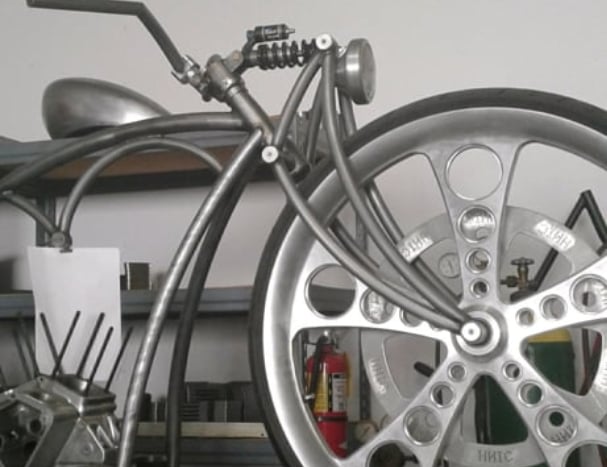

Image 7 of Tinworksinc Harley/Chopper/Bobber Single Shock Front End Girder USA Made

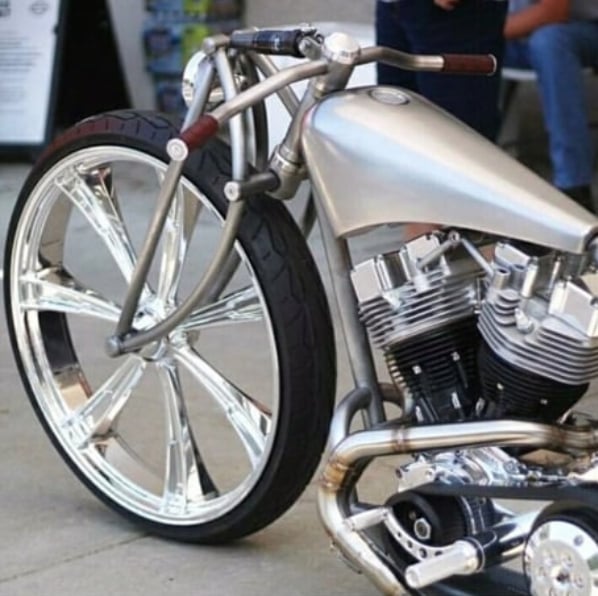

Image 8 of Tinworksinc Harley/Chopper/Bobber Single Shock Front End Girder USA Made
